PCAN-Cable 2
PCAN-Cable 2
PCAN-Cable 2
PCAN-Cable 2
SKU IPEK-003002

PCAN-Cable 2

Rs. 2,800.00 - Rs. 2,800.00
Rs. 2,800.00
Rs. 2,800.00 - Rs. 2,800.00
Rs. 2,800.00

High-speed CAN buses (ISO 11898-2) must be terminated at their ends by resistors.

The adapters PCAN-Term and PCAN-MiniTerm are used if no CAN node or a CAN node without internal termination is connected at these points.

The termination adapters can also be used for CAN FD buses.

Technical Specifications

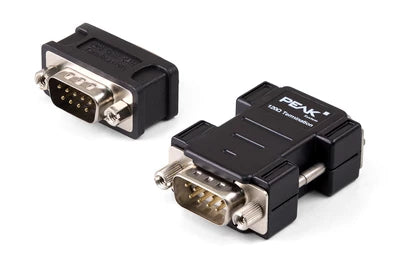

PCAN-Term

  • CAN termination adapter in plastic casing
  • 9-pin D-Sub socket to 9-pin D-Sub connector (in accordance with CiA® 106)

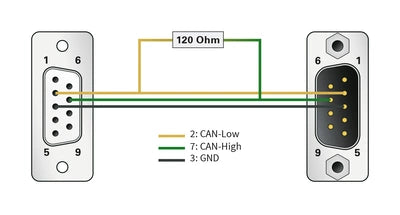

  • With 120-Ohm termination resistor between CAN_L and CAN_H
  • Suitable for the use in CAN FD buses


PCAN-MiniTerm

  • CAN termination adapter in molded body
  • 9-pin D-Sub socket to 9-pin D-Sub connector (in accordance with CiA® 106)
  • All pins are connected 1 to 1
  • With 120-Ohm termination resistor between CAN_L and CAN_H
  • Suitable for the use in CAN FD buses
Scope of Supply
  • PCAN-Term: CAN termination adapter in plastic casing
  • PCAN-MiniTerm: CAN termination adapter in molded body
