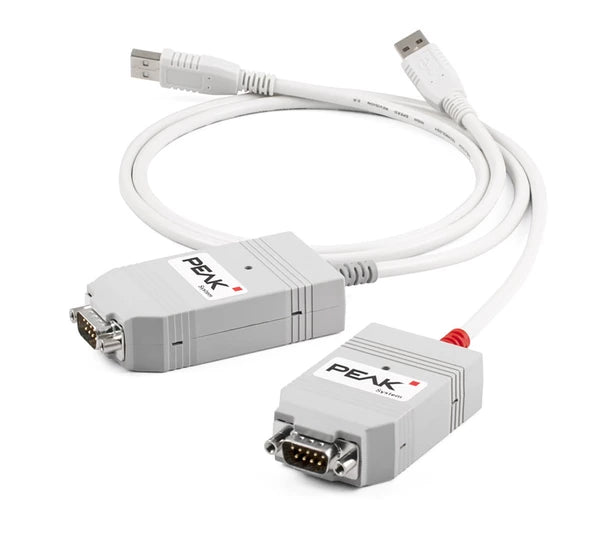

PCAN-USB Adaptor isolated version
PCAN-USB Adaptor isolated version
SKU IPEH-002022

PCAN-USB Adaptor isolated version

Rs. 33,800.00 - Rs. 33,800.00
Rs. 33,800.00
Rs. 33,800.00 - Rs. 33,800.00
Rs. 33,800.00

The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.

The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.

The package is also supplied with the CAN monitor PCAN-View for Windows® and the programming interface PCAN-Basic.

Technical Specifications

  • Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
  • High-speed CAN connection (ISO 11898-2)
  • Bit rates from 5 kbit/s up to 1 Mbit/s
  • Time stamp resolution approx. 42 µs
  • Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus connection via D-Sub, 9-pin (in accordance with CiA® 106)
  • NXP SJA1000 CAN controller, 16 MHz clock frequency
  • NXP PCA82C251 CAN transceiver
  • Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
  • CAN termination can be activated through a solder jumper
  • 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
  • Voltage supply via USB
  • Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)
Scope of Supply
  • PCAN-USB in plastic casing
  • Device drivers for Windows® 11 (x64/ARM64), 10 (x64), and Linux
  • CAN monitor PCAN-View for Windows® Details ...
  • Programming interface PCAN-Basic for developing applications with CAN connection Details ...
  • Programming interfaces for standardized protocols from the automotive sector
  • Manual in PDF format
Downloads

Device driver setup 5.x for Windows

PEAK-System installation package for PC interface device drivers for Windows® 11 (x64/ARM64), 10 (x64). Included tools: PEAK Settings, PCAN-View, PLIN-View Pro, and Virtual PCAN-Gateway. Included APIs: PCAN-Basic, PLIN-API, and PCAN-RP1210.

Download

CAN device driver for Linux

Device drivers for PEAK CAN interfaces running on Kernel 2.6 and higher.

Website

PCAN-USB manual

 German English

PEAK-Flash 3

Easy-to-use tool for updating the firmware of PEAK-System hardware products as well as CAN and LIN adapters for Windows® 11 (x64/ARM64), 10 (x64).

Download

PCAN-Basic API 5.x

API for the development of applications with CAN CC, CAN FD, and CAN XL connections for Windows® 11 (x64/ARM64), 10 (x64).

Download

PCAN-Basic API (Linux)

API for the development of applications with CAN connection for Linux.

Download

PCAN-Basic.NET Assembly

The PCAN-Basic.NET Assembly is available as a package in the NuGet Gallery. The online documentation is available on our website.

Documentation NuGet Gallery

PCAN-CCP API

API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP) for Windows® 11 (x64/ARM64), 10 (x86/x64).

Download

PCAN-XCP API

API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP) for Windows® 11 (x64/ARM64), 10 (x86/x64).

Download

PCAN-ISO-TP API

API for the transfer of data packages according to ISO-TP (ISO 15765-2) for Windows® 11 (x64/ARM64), 10 (x64).

Download

PCAN-UDS API

API to communicate with control devices according to UDS (ISO 14229-1) for Windows® 11 (x64/ARM64), 10 (x64).

Download

PCAN-OBD-2 API

API for the vehicle diagnostics according to OBD-2 (ISO 15765-4) for Windows® 11 (x64/ARM64), 10 (x64).

Download

PCAN-PassThru API

Pass-Thru API and connection of Pass-Thru software to PEAK CAN interfaces. Installation for Windows® 11 (x64/ARM64), 10 (x64) includes interface DLLs, a configuration software, and the PCAN-ISO-TP API. The download also contains the documentation (English).

Download

More

Additional information

Free returns on all eligible orders

Customers may request a return within 7 days of delivery if:

  • The product is damaged
  • The wrong item was delivered
  • The item has manufacturing defects

To be eligible:

  • Product must be unused
  • Product must be in original packaging
  • Tags and accessories must be intact
